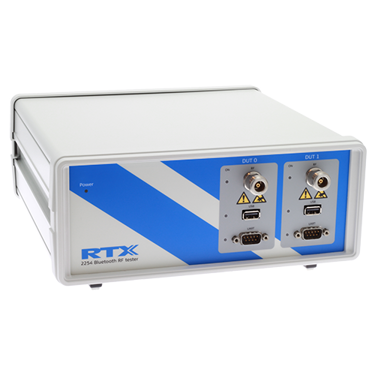

Bluetooth Low-Energy RF Tester RTX2254
Supports Bluetooth 4.0-5.1 and provides a high-speed, cost-effective way of monitoring quality and performance of BLE devices by allowing users to test key RF parameters on both the PCBA and final assembly level. RF measurements are performed in Direct Test Mode via the tester's embedded HCI interface or as an option also Over-The-Air via the advertising channels i.e. in Advertising mode.
Systems
Bluetooth Low-Energy RF Tester RTX2254
Specifications
Analyser
- Frequency range :
- Same as signal generator
- Level meter (NTP) range :
- -50 dbm to +10 dbm
- Level meter (NTP) resolution :
- 0.1 db
- Accuracy for NTP:
- +/- 1.0 db
Support
- Bluetooth versions :
- 4.0, 4.1, 4.2, 5.0 & 5.1
Signal generator
- Frequency range :
- 2402 mhz to 2480 mhz
- Frequency accuracy :
- +/- 1.0 ppm
- Aging:
- <0.5 ppm/year at 35°c
- Output level :
- -100 dbm to -40 dbm
- Resolution:
- 0.5 db
- Level error :
- +/- 1.5 db
- Modulation:
- GFSK
Connections
- RF In/Out(DUT 0 & 1):
- N (50Ω)
- DUT HCI (DUT 0 &1):
- USB, UART 2 & 4 wire, 1.8 - 5.0 V (auto-level sensing)
General data
- Supply voltage :
- 100-240 vac 50-60 Hz
- Power consumption :
- Approx. 18 W
- Operating temperature range :
- +15°C to +40°C (59°F to 95°F)
- Storage temperature range :
- -20°C to +60°C (35°F to 140°F)
- Operating humidity:
- < 75% relative humidity at 40°C (104°F) non-condensing
- Dimensions (WxHxD) :
- 255 x 105 x 270 mm (approx. 10 x 4 ⅛ x 10 ½ in)
- Weight :
- 3.9 kg (8 lbs 10 oz)
