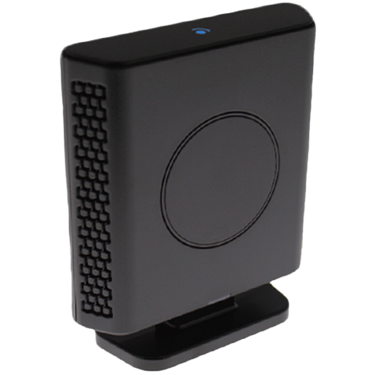

Single-cell Base Station RTX9431
The RTX9431 is the Next Generation Single Cell Base Station for small and medium businesses and enterprises. It can easily be upgraded to a dual cell that extends range and call capacities.
Part of
Single-cell Base Station RTX9431
Specifications
Features
- DECT Frequency bands :
- 1880 – 1900 MHz (EU) • 1910 – 1930 MHz (LATAM) • 1920 – 1930 MHz (US)
- DECT specifications:
- See Product Sheet for full list
- Audio:
- 10 channels using G.726/G711 codec • 4 channels using G.729 calls• 5 CAT-iq wideband channels using G.722
- Antennas:
- Internal omni-directional antennas • Range: 50m(Indoor), 300m(Outdoor) • Fast antenna diversity switching
- PBX Compliance:
- Asterisk • 3CX • Centile • Metaswitch • BroadSoft (DMS, XSI, Shared call appearance)
Features
- Power Supply:
- Power over Ethernet (PoE): 37-57V - IEEE802.3af (Class 2) • DC power input: 5VDC@2A (Optional)
- Ethernet:
- Connector: RJ 45 • 10/100 Base-T interface (IEEE802.3)
- Mechanics:
- Housing: IP20 • Dimensions: 109x93x24mm (HxWxD) • Temperature Range: -10° to +50°
- Other:
- LED status indication • Firmware update
- Approvals and additional technical specifications:
- See Product Sheet for full list
