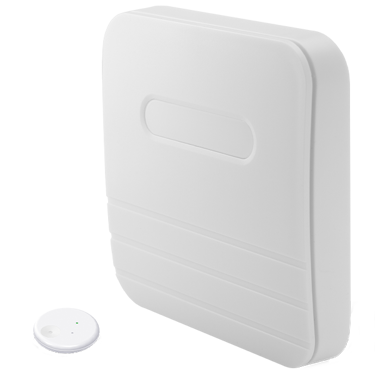

RTX8200 Location Gateway
Location Gateways

Location Gateway RTX8200

The Bluetooth beacon is used for indoor localization in large building like hospitals, malls, offices or airport terminals. The beacon is placed in the different rooms, or doorways and when a terminal, with BTLE support, detects the beacon it will report the id information to a central sever via the terminals DECT connection.

Contact us

Location Gateway RTX8200

Specifications

Features

Bluetooth:
See product sheet for full list
Configuration:
Configuration via: Handset, Base provisioning
Deployment:
Deployment survey tool in DECT handset
DECT frequency bands:
1880-1900MHz (EU) • 1910–1930MHz (LATAM) • 1910–1920MHz (Brazil) • 1920–1930MHz (US)
Range:
In-door: 50m • Out-door: 300m
Environmental conditions:
ESD 8KV Contact and 12KV Air • Operating conditions: 0 – 45 degrees
Size and weight:
Size: 112 x 112 x 23mm • Weight: 155g
Reliability spec:
Drop height: 1.0 m on hardwood floor
Power supply option:
5-24V DC connection • USB power connection • 2 x AA Alkalin • POE IEEE 802.3af compliant
Approvals:
EU,US, CA and AUS
Box content:
1 RTX8200 Beacon • 2 batteries • 1 Safety sheet

Product Sheet

RTX8200 Product Sheet V004

PDF | 1.38 mb

Download
