RTX2018 Multi-Level Modulation DECT RF Tester
RF Testers

Multi-Level Modulation DECT RF Tester RTX2018

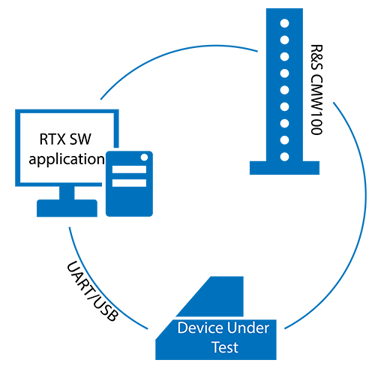

Performs all key RF measurements on multi-level modulation products using for example the Dialog 14495 MLM DECT chip. The RTX2018 is the third generation of DECT RF testers on the market and supports all frequency bands – European DECT, North American DECT, Japanese DECT, and Korean DECT. The RTX2018 consists of an RTX software application and a Rohde & Schwarz CMW100 (hardware). The RTX2018 allows users to communicate with the DUT (Device Under Test) through UART or USB while performing all the key RF measurements. The comprehensive non-signaling application is well-suited for both R&D and manufacturing.

Specifications

Measurement type

Frequency band:
DECT EU • DECT US • DECT Japan • DECT Korea
Slot types:
P32 • PP32 • P64 • PP64
Modulation types:
π/2-DBPSK • π/4-DQPSK • π/8-D8PSK • GFSK
Transmitter:
EVM • NTP • Power template • Carrier frequency offset • Frequency deviation
Receiver:
Sensitivity • BER • PER

General data

R&S CMW100:
Please see the data sheet for CMW100 on R&S website

Product Sheet

RTX2018 MLM DECT RF Tester Data Sheet V004

PDF | 0.92 mb

Download
